PPR Pipe Extrusion Machine
Meet Our Top-tier All Rounder Series Of Ppr Pipe Extrusion System

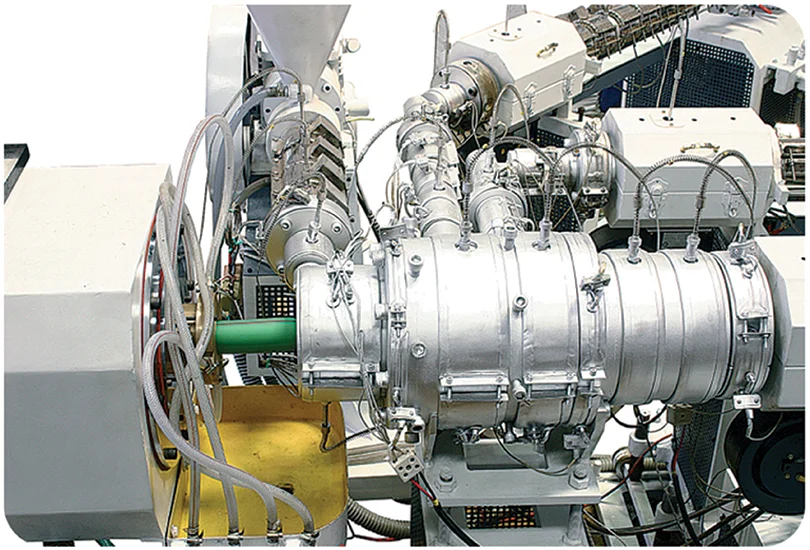

Nilkanth Engitech presents India’s most advanced PPR pipe extrusion system. The machine is based on an indigenous design that increases production capacity with great quality of finished product. It is to this end that we are proud to announce that this machine has the highest installations of any PPR machine in India till date. Our PPR cold and hot water pipe production line consists of 3 Extruders, Die Head, Moulds, Vacuum Calibrating cooling water tank, Spray cooling water tank, haul-off, printers, cutters, stackers, etc.
Machine Models & Technical Specifications
Our All–Rounder Series of PPR Pipe Extrusion Systems comes in different models to handle various production needs and pipe sizes while ensuring high efficiency and performance.
| MODEL | PIPE LAYER | SCREW DIA (MM) | L/D RATIO | MAIN MOTOR (KW) | MAX. OUTPUT (KG/HR) | PIPE RANGE (MM) |
|---|---|---|---|---|---|---|
| NE-65X45X45X30-PPR-110 | THREE LAYER ABC TYPE | 65+45+45 | 33:1 | 37+7.5+11 | 150 | 16-110 |
| NE-75X45X45X30-PPR-110 | THREE LAYER ABC TYPE | 75+45+45 | 33:1 | 75+11+15 | 300 | 20-110 |
| NE-75X45X45X30-PPR-200 | THREE LAYER ABC TYPE | 75+45+45 | 33:1 | 75+11+15 | 300 | 20-200 |
| NE-75X65X65X30-PPR-200 | THREE LAYER ABC TYPE | 75+65+55 | 33:1 | 110+45+45 | 550 | 20-200 |
| NE-90X45X45X30-PPR-200 | THREE LAYER ABC TYPE | 90+45+45 | 33:1 | 160+15+18 | 550 | 20-200 |
| Feature | Fields Of Application Of Triple Layer PPR Pipes |
|---|---|
| ISI/BIS/DIN Standard | Hot & Cold Water Supply. |
| Low Energy Consumption | Compressed air system. |
| Anti-Microbial Inner Layer | Drinking water and liquid food supply. |
| PPR Middle Layer | Gardening, Agriculture, Horticulture. |
| UV Resistant Outer Layer | Industrial Chemical Transportation |
| System Specially for Pharmaceutical | |
| Industry, Food Industry & Chemical Industry |
INDIA’S FIRST 3-LAYER PPR PIPE EXTRUSION SYSTEM
Flat Drip Tube Manufacturing Process

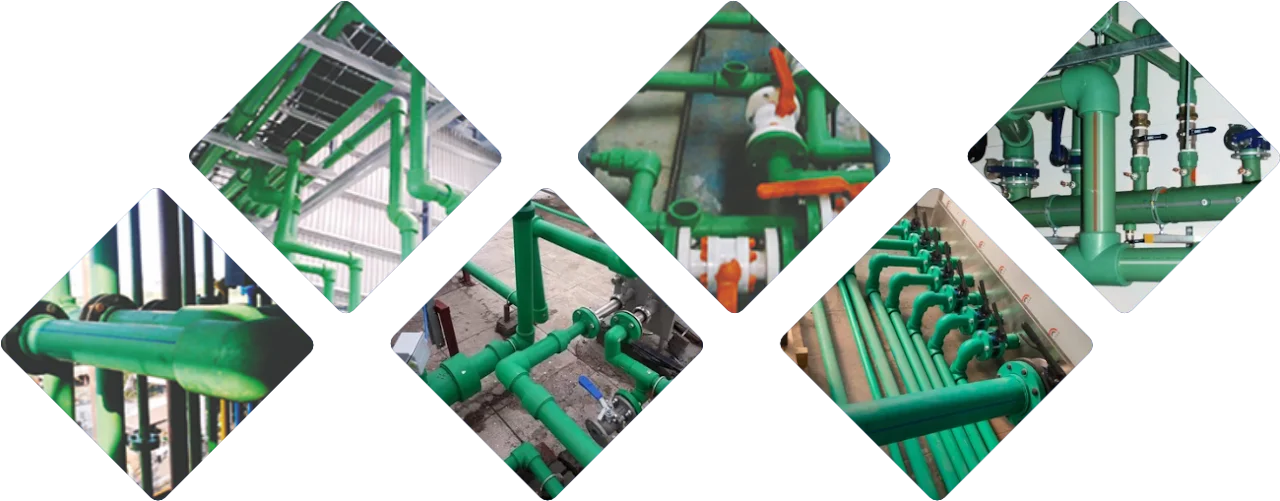

Fields Of Application Of Triple Layer PPR Pipes
PPR pipe extrusion system manufactured using Nilkanth Engitech extrusion technology are widely used in
- Hot & Cold Water Supply.
- Compressed air system.
- Drinking water and liquid food supply.
- Gardening, Agriculture, Horticulture.
- Industrial Chemical Transportation
- System Specially for Pharmaceutical
- Industry, Food Industry & Chemical Industry
Materials
PP Dana
HD Dana
LD Dana
PVC Cable Dana
