Flat Drip Irrigation

Description

Flat Drip Irrigation

High-Speed PLC-Controlled Drip Tube Manufacturing Line with Output up to 300 Kg/hr and Line Speed up to 300-400 m/min.

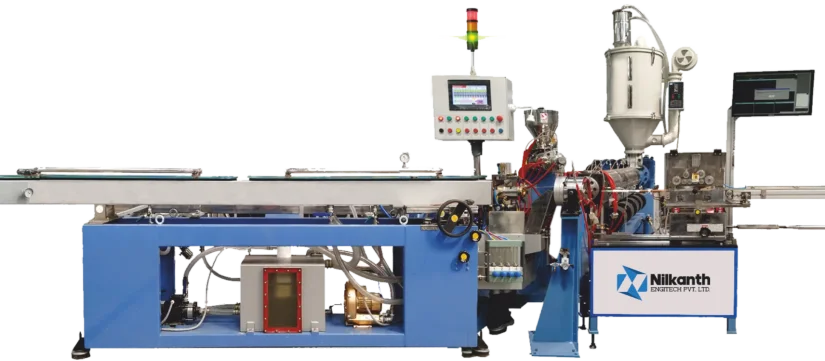

Nilkanth Engi Tech manufactures India’s most advanced Flat Drip Irrigation Tube Extrusion Machine designed for high-speed, energy-efficient production of premium-quality drip irrigation pipes. Equipped with PLC automation, servo-controlled dripper insertion technology, and an advanced perforation system, the extrusion line delivers up to 700 drippers per minute and production speeds up to 300-400 meters per minute.

The system is engineered for single-layer and multilayer flat drip irrigation tube production, ensuring precise dripper placement, superior pipe quality, low power consumption, and reduced manufacturing costs.

Ideal for agricultural irrigation pipe manufacturers, greenhouse irrigation systems, orchard irrigation projects, and large-scale drip irrigation pipe production facilities.

Choose the Right Flat Drip Pipe Making Machine for Your Business

Review our complete range of Flat Drip Pipe Extrusion Lines featuring different output capacities, dripper insertion systems, and automation levels to meet diverse production requirements.

MODEL	PIPE LAYER	MAX. OUTPUT (KGS/HR)	DRIPPER INSERTION UNIT (INSERTION/MIN.)	PERFORATION TYPE	PERFORATION UNIT	LINE SPEED (MPM) MAX.	DOUBLE STATION AUTO COILER	TOTAL CONNECTED LOAD (kW)	SPACE (L × W × H METRE)
NE-75X20-FD	SINGLE LAYER	200	700	SINGLE HEAD	1 OR 2 HOLES	120–200	1000 MTR COIL	125	45X6X4
NE-75X20-FD-HS	SINGLE LAYER	300	700	SINGLE HEAD	1 OR 2 HOLES	150–250	1000 MTR COIL	155	45X6X4
NE-75X45X20-FD	THREE LAYER (ABA)	225	700	SINGLE HEAD	1 OR 2 HOLES	120–200	1000 MTR COIL	150	45X6X4
NE-75X45X20-FD-DP	THREE LAYER (ABA)	225	700	DUAL HEAD	1 OR 2 HOLES	120–200	1000 MTR COIL	150	45X6X4
NE-75X45X20-FD-HS	THREE LAYER (ABA)	300	700	SINGLE HEAD	1 OR 2 HOLES	150–250	1000 MTR COIL	180	45X6X4
NE-75X45X20-FD-HS-DP-LBF	THREE LAYER (ABA)	300	1200	DUAL HEAD	1 OR 2 HOLES	200–300	1000 MTR COIL	180	45X6X4
NE-75X45X20-FD-HS-DP-DRA	THREE LAYER (ABA)	300	1500	DUAL HEAD	1 OR 2 HOLES	300–350	1000 MTR COIL	180	45X6X4
NE-75X45X45X20-FD	THREE LAYER (ABA)	250	700	SINGLE HEAD	1 OR 2 HOLES	120–200	1000 MTR COIL	175	45X6X4

Flat Drip Irrigation systems are becoming the preferred choice for modern agriculture due to their ability to conserve water while maximizing crop productivity. To meet the growing demand for precision irrigation products, Nilkanth Engitech offers India’s most advanced Flat Drip Irrigation Tube Extrusion System.

Engineered with cutting-edge PLC automation, precision dripper insertion technology, and high-speed perforation systems, this extrusion line delivers exceptional output quality with lower power consumption. The system is capable of producing single-layer and multilayer flat drip tubes with line speeds reaching up to 300-400 meters per minute.

With over 38 years of manufacturing excellence and more than 3,500 successful installations worldwide, Nilkanth Engitech empowers irrigation manufacturers to achieve higher production efficiency, reduced wastage, and consistent product quality.

Flat Drip Tube Manufacturing Process

Raw Material Feeding

→

Extrusion

→

Dripper Insertion

→

Cooling

→

Perforation

→

Haul-Off

→

Accumulator

→

Automatic Coiling

→

Finished Product

Key Features of Flat Drip Irrigation Tube Extrusion System

Designed for high-speed production, superior drip tube quality, and reduced operating costs, Nilkanth Engitech Flat Drip Irrigation Tube Extrusion System delivers unmatched performance and reliability.

Feature	Customer Benefit
Barrier / Shear Ring Screw Design	Ensures homogeneous melt quality and stable production performance.
PLC-Based Automation System	Simplifies operation, improves process control, and reduces operator dependency.
Dripper Insertion Capacity up to 1500 Inserts/Minute	Enables higher productivity with precise dripper placement.
High-Speed Perforation Unit	Supports perforation rates up to 2000 drippers per minute for faster production cycles.
Automatic Pipe Cut and Changeover	Minimizes downtime and ensures uninterrupted operation.
Double Station Automatic Coiler	Allows continuous coiling without stopping the production line.
Adjustable Dripper Spacing (100–2000 mm)	Provides flexibility to manufacture different drip irrigation products.
Single Layer & ABA Multilayer Capability	Reduces raw material costs while maintaining product quality.
Low Power Consumption (Approx. 0.27 Unit/Kg)	Improves profitability by reducing energy expenses.
Production Speed up to 300-400 m/min	Maximizes output capacity and enhances manufacturing efficiency.

Applications of Flat Drip Irrigation Pipes

Flat drip irrigation pipes manufactured using Nilkanth Engitech extrusion technology are widely used in

Agriculture Irrigation
Greenhouse Farming
Vegetable Cultivation
Sugarcane Irrigation
Cotton Farming
Orchard Irrigation
Landscape Irrigation
Commercial Farming Projects
Water Conservation Programs
Precision Irrigation Systems

See Nilkanth Engitech Machines In Action

Explore actual production performance, automation capabilities, and finished product quality through real installation videos from customer facilities.
